Alsipercha Wall Bracket Kit
$1,198.76

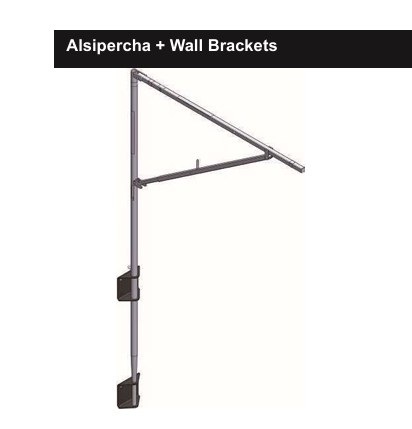

The Alsipercha + Wall Brackets system, designed and tested in compliance to EN:795:2012 and ANSI/ASSE Z359.18-2017, consist of a pair of connectors (upper bracket + lower bracket), through which the Alsipercha will later be inserted. It consists of a pair of steel galvanized pair of brackets, with main central holes through which the Alsipercha will pass through, and distanced between them at a mínimum distance of 3.3 feet.

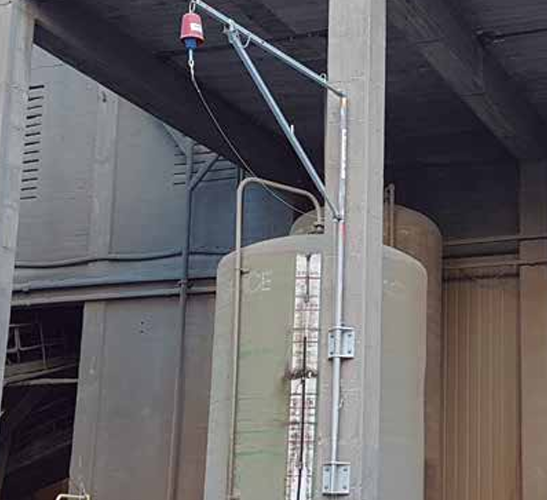

This combination provides a versatile solution, as it can be anchored to columns/walls/surface made of reinforced concrete.
Items:
83418 Alsipercha Hook 1.00
83851 Upper wall bracket 1.00
83852 Lower wall bracket 1.00
83853 Wall bracket anchor 8.00
83854 Wall bracket nut DIN 934-M16 8.00
83855 Washer M12DIN 127-M16 8.00
83856 Washer DIN 125-M16 8.00
83857 Washer DIN 9021-M16 8.00
84858 Epoxi Resin 410ml 2.00
Specifications
- dimensions (ft in) : 1' x 1' x 6" per bracket
- weight (lb): 33lbs per bracket
*Contact Us For You Freight Estimate*
